Validation

This document can be used to validate the inputs and result of the execution of the upgrade transaction which you are signing.

The steps are:

1. Validate the Domain and Message Hashes
2. Verifying the state changes via the normalized state diff hash
3. Verifying the transaction input
4. Verifying the state changes

Expected Domain and Message Hashes

First, we need to validate the domain and message hashes. These values should match both the values on your ledger and the values printed to the terminal when you run the task.

Normalized State Diff Hash Attestation

The normalized state diff hash MUST match the hash created by the state changes attested to in the state diff audit report. As a signer, you are responsible for making sure this hash is correct. Please compare the hash below with the hash in the audit report.

Normalized hash: 0x4d50717185117827e3265c4183bfad6a0e839821a189342d38134f2e63a9c3b1

Understanding Task Calldata

This document provides a detailed analysis of the final calldata executed on-chain. By reconstructing the calldata, we can confirm that the execution precisely implements the approved upgrade plan with no unexpected modifications or side effects.

The calldata provided in the governance proposal is:

0x82ad56cb0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000200000000000000000000000003a1f523a4bc09cd344a2745a108bb0398288094f0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000006000000000000000000000000000000000000000000000000000000000000001049a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000002000000000000000000000000229047fed2591dbec1ef1118d64f7af3db9eb290000000000000000000000000543ba4aadbab8f9025686bd03993043599c6fb0403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000062c0a111929fa32cec2f76adba54c16afb6e8364000000000000000000000000d56045e68956fce2576e680c95a4750cf8241f7903682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000000000000000000000000000000000000

Inputs to Multicall3Delegatecall.aggregate3()

The calldata from the governance proposal is the arguments to the aggregate3() function of the Multicall3Delegatecall contract, at 0x93dc480940585d9961bfceab58124ffd3d60f76a.

The command to decode the calldata is:

cast decode-calldata "aggregate3((address,bool,bytes)[])" 0x82ad56cb0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000200000000000000000000000003a1f523a4bc09cd344a2745a108bb0398288094f0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000006000000000000000000000000000000000000000000000000000000000000001049a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000002000000000000000000000000229047fed2591dbec1ef1118d64f7af3db9eb290000000000000000000000000543ba4aadbab8f9025686bd03993043599c6fb0403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000062c0a111929fa32cec2f76adba54c16afb6e8364000000000000000000000000d56045e68956fce2576e680c95a4750cf8241f7903682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000000000000000000000000000000000000

The decoded arguments is an array with a single tuple of three elements:

[(
0x3A1f523a4bc09cd344A2745a108Bb0398288094F,
false
0x9a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000002000000000000000000000000229047fed2591dbec1ef1118d64f7af3db9eb290000000000000000000000000543ba4aadbab8f9025686bd03993043599c6fb0403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000062c0a111929fa32cec2f76adba54c16afb6e8364000000000000000000000000d56045e68956fce2576e680c95a4750cf8241f7903682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
)]

This tuple is the Call3 struct, which represents the parameters for a single delegatecall:

• target: The OPContractsManager contract
• allowFailure: false
• calldata: As shown above

Inputs to OPContractsManager.updatePrestate()

The calldata in the Call3 struct above is the arguments to the updatePrestate() function of the OPContractsManager contract, at 0x3A1f523a4bc09cd344A2745a108Bb0398288094F.

THe command to decode the calldata is:

cast decode-calldata "updatePrestate((address,address,bytes32)[])" 0x9a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000002000000000000000000000000229047fed2591dbec1ef1118d64f7af3db9eb290000000000000000000000000543ba4aadbab8f9025686bd03993043599c6fb0403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000062c0a111929fa32cec2f76adba54c16afb6e8364000000000000000000000000d56045e68956fce2576e680c95a4750cf8241f7903682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6

The decoded arguments is an array of tuples with three elements:

[
    (
        0x229047fed2591dbec1eF1118d64F7aF3dB9EB290,
        0x543bA4AADBAb8f9025686Bd03993043599c6fB04,
        0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
    ),
    (
        0x62C0a111929fA32ceC2F76aDba54C16aFb6E8364,
        0xd56045E68956FCe2576E680c95a4750cf8241f79,
        0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
    )
]

Each tuple is an OpChainConfig struct for each chain being updated:

1. OP Mainnet:
   • systemConfigProxy: 0x229047fed2591dbec1eF1118d64F7aF3dB9EB290
   • proxyAdmin: 0x543bA4AADBAb8f9025686Bd03993043599c6fB04
   • absolutePrestate: 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
2. Ink Mainnet:
   • systemConfigProxy: 0x62C0a111929fA32ceC2F76aDba54C16aFb6E8364
   • proxyAdmin: 0xd56045E68956FCe2576E680c95a4750cf8241f79
   • absolutePrestate: 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6

As a result, OPContractsManager.updatePrestate() is called to update the prestate hash for both OP and Ink mainnet.

State Validation

For each contract listed in the state diff, please verify that no contracts or state changes shown in the Tenderly diff are missing from this document. Additionally, please verify that for each contract:

• The following state changes (and none others) are made to that contract. This validates that no unexpected state changes occur.
• All addresses (in section headers and storage values) match the provided name, using the Etherscan and Superchain Registry links provided. This validates the bytecode deployed at the addresses contains the correct logic.
• All key values match the semantic meaning provided, which can be validated using the storage layout links provided.

Generic Safe State Overrides

Note: The changes listed below do not include threshold, nonce and owner mapping overrides. These changes are listed and explained in the NESTED-VALIDATION.md file.

0x10d7b35078d3baabb96dd45a9143b94be65b12cd (DisputeGameFactory) - Chain ID: 57073 (INK)

• Key: 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e

  • Before: 0x000000000000000000000000436bac2efe273e3f13eefeda2b3689c34591bca1
  • After: 0x00000000000000000000000040641a4023f0f4c66d7f8ade16497f4c947a7163
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
  • Detail: This state update will replace the old Dispute Game implementation for the Game Type 1 (PERMISSIONED_CANNON) - 0x436bac2efe273e3f13eefeda2b3689c34591bca1 (old) => 0x40641a4023f0f4c66d7f8ade16497f4c947a7163 (new)
  • Key Explanation: The key represents the position in the gameImpls mapping of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 1 (PERMISSIONED_CANNON) 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e:

  cast index uint32 1 101



  GameType is uint32 type

  Position in the mapping is 1

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

• Key: 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b

  • Before: 0x000000000000000000000000499e30a3b1bdb03f554ffffae4c9c5edf31ca554
  • After: 0x0000000000000000000000003ccf7c31a3a8c1b8aaa9a18fc2d010dde4262342
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
  • Detail: This state update will replace the old Dispute Game implementation for the Game Type 0 (CANNON) - 0x499e30a3b1bdb03f554ffffae4c9c5edf31ca554 (old) => 0x3ccf7c31a3a8c1b8aaa9a18fc2d010dde4262342 (new)
  • Key Explanation: The key represents the position in the gameImpls of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 0 (CANNON) 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b:

  cast index uint32 0 101



  GameType is uint32 type

  Position in the mapping is 0

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

0xe5965ab5962edc7477c8520243a95517cd252fa9 (DisputeGameFactory) - Chain ID: 10 (Optimism Mainnet)

• Key: 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e

  • Before: 0x0000000000000000000000001ae178ebfeecd51709432ea5f37845da0414edfe
  • After: 0x000000000000000000000000a1e0bacde89d899b3f24eef3d179cc335a24e777
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
  • Detail: This state update will replace the old Dispute Game implementation for the Game Type 1 (PERMISSIONED_CANNON) - 0x1ae178ebfeecd51709432ea5f37845da0414edfe (old) => 0xa1e0bacde89d899b3f24eef3d179cc335a24e777 (new)
  • Key Explanation: The key represents the position in the gameImpls of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 1 (PERMISSIONED_CANNON) 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e:

  cast index uint32 1 101



  GameType is uint32 type

  Position in the mapping is 1

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

• Key: 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b

  • Before: 0x0000000000000000000000005738a876359b48a65d35482c93b43e2c1147b32b
  • After: 0x00000000000000000000000089d68b1d63aaa0db4af1163e81f56b76934292f8
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
  • Detail: This state update will replace the old Dispute Game implementation for the Game Type 0 (CANNON) - 0x5738a876359b48a65d35482c93b43e2c1147b32b (old) => 0x89d68b1d63aaa0db4af1163e81f56b76934292f8 (new)
  • Key Explanation: The key represents the position in the gameImpls of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 0 (CANNON) 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b:

  cast index uint32 0 101



  GameType is uint32 type

  Position in the mapping is 0

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

0x24424336F04440b1c28685a38303aC33C9D14a25 (LivenessGuard)

THIS STATE DIFF ONLY APPEARS WHEN SIGNING FOR THE COUNCIL AND DOES NOT NEED TO BE CHECKED BY SIGNERS.

The details are explained in NESTED-VALIDATION.md.

0x5a0Aae59D09fccBdDb6C6CcEB07B7279367C3d2A (Superchain ProxyAdminOwner)

• Nonce increments see below
• approvedHashes mapping updates are explained in detail in NESTED-VALIDATION.md. The key computations are:
  • Foundation only

    SAFE_SIGNER=0x847B5c174615B1B7fDF770882256e2D3E95b9D92
    SAFE_HASH=0x410dacd36755998923076d5c5f115b77116f3e479a9a5cecf45f6c2dab3da479
    cast index bytes32 $SAFE_HASH $(cast index address $SAFE_SIGNER 8)


    Key: 0xea44a27dff7f1fec743500257a14e44c424876595dfb8c1eaf765eecdd3c4f41
  • Security Council only

    SAFE_SIGNER=0xc2819DC788505Aac350142A7A707BF9D03E3Bd03
    SAFE_HASH=0x410dacd36755998923076d5c5f115b77116f3e479a9a5cecf45f6c2dab3da479
    cast index bytes32 $SAFE_HASH $(cast index address $SAFE_SIGNER 8)


    Key: 0xb32ab0e2f892afb0356b7eb63cab3a3ba9ad4d3a01899d832360c55ddfa4a785

Nonce increments

• Contract deployments are shown as nonce increments from 0 to 1
  • 0x3cCF7C31a3A8C1b8aaA9A18FC2d010dDE4262342 - Permissionless [CANNON] GameType Implementation for Ink
  • 0x40641A4023f0F4C66D7f8Ade16497f4C947A7163 - Permissioned [PERMISSIONED_CANNON] GameType Implementation for Ink
  • 0x89D68b1D63AAA0db4af1163e81f56B76934292F8 - Permissionless [CANNON] GameType Implementation for OP Mainnet
  • 0xa1E0baCde89d899B3f24eEF3D179cC335A24E777 - Permissioned [PERMISSIONED_CANNON] GameType Implementation for OP Mainnet
• The remaining nonce increments are for the Safes and EOAs that are involved in the simulation. The details are described in the generic NESTED-VALIDATION.md document.
  • - Sender address of the Tenderly transaction (Your ledger or first owner on the nested safe (if you're simulating)).
  • 0x5a0Aae59D09fccBdDb6C6CcEB07B7279367C3d2A - Superchain ProxyAdminOwner
    • Contract nonce 14 -> 18 - four contract deployments above
    • Safe nonce (slot 0x5) 14 -> 15
  • Only one of the following nonce increments, depending on which Owner Safe is simulated
    • 0x847B5c174615B1B7fDF770882256e2D3E95b9D92 - Foundation Upgrade Safe 24 -> 25
    • 0xc2819DC788505Aac350142A7A707BF9D03E3Bd03 - Security Council Safe 25 -> 26

Suplement Material

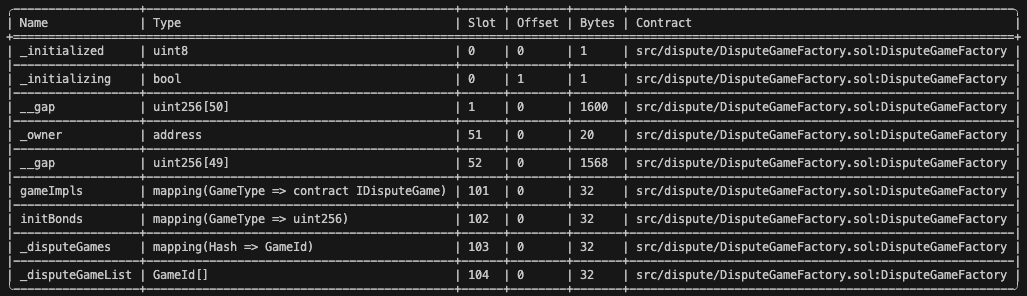

The following is the storage slots layout of the DisputeGameFactory contract:

Validation

This document can be used to validate the inputs and result of the execution of the upgrade transaction which you are signing.

The steps are:

1. Validate the Domain and Message Hashes
2. Verifying the state changes via the normalized state diff hash
3. Verifying the transaction input
4. Verifying the state changes

Expected Domain and Message Hashes

First, we need to validate the domain and message hashes. These values should match both the values on your ledger and the values printed to the terminal when you run the task.

Normalized State Diff Hash Attestation

The normalized state diff hash MUST match the hash created by the state changes attested to in the state diff audit report. As a signer, you are responsible for making sure this hash is correct. Please compare the hash below with the hash in the audit report.

Normalized hash: 0x5a3f19f595ad7baf0483c96aa23a6bfe7c74b64eb5333a069650017ae4faa790

Understanding Task Calldata

This document provides a detailed analysis of the final calldata executed on-chain. By reconstructing the calldata, we can confirm that the execution precisely implements the approved upgrade plan with no unexpected modifications or side effects.

The calldata provided in the governance proposal for Unichain is:

0x82ad56cb0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000200000000000000000000000003a1f523a4bc09cd344a2745a108bb0398288094f0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000006000000000000000000000000000000000000000000000000000000000000000a49a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000001000000000000000000000000c407398d063f942febbcc6f80a156b47f3f1bda60000000000000000000000003b73fa8d82f511a3cae17b5a26e4e1a2d5e2f2a403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000000000000000000000000000000000000

Inputs to Multicall3Delegatecall.aggregate3()

The calldata from the governance proposal is the arguments to the aggregate3() function of the Multicall3Delegatecall contract, at 0x93dc480940585d9961bfceab58124ffd3d60f76a.

The command to decode the calldata is:

cast decode-calldata "aggregate3((address,bool,bytes)[])" 0x82ad56cb0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000200000000000000000000000003a1f523a4bc09cd344a2745a108bb0398288094f0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000006000000000000000000000000000000000000000000000000000000000000000a49a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000001000000000000000000000000c407398d063f942febbcc6f80a156b47f3f1bda60000000000000000000000003b73fa8d82f511a3cae17b5a26e4e1a2d5e2f2a403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b600000000000000000000000000000000000000000000000000000000

The decoded arguments is an array with a single tuple of three elements:

[(
0x3A1f523a4bc09cd344A2745a108Bb0398288094F,
false,
0x9a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000001000000000000000000000000c407398d063f942febbcc6f80a156b47f3f1bda60000000000000000000000003b73fa8d82f511a3cae17b5a26e4e1a2d5e2f2a403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
)]

This tuple is the Call3 struct, which represents the parameters for a single call:

• target: The OPContractsManager contract
• allowFailure: false
• calldata: As shown above

Inputs to OPContractsManager.updatePrestate()

The calldata in the Call3 struct above is the arguments to the updatePrestate() function of the OPContractsManager contract, at 0x3A1f523a4bc09cd344A2745a108Bb0398288094F.

The command to decode the calldata is:

cast decode-calldata "updatePrestate((address,address,bytes32)[])" 0x9a72745b00000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000001000000000000000000000000c407398d063f942febbcc6f80a156b47f3f1bda60000000000000000000000003b73fa8d82f511a3cae17b5a26e4e1a2d5e2f2a403682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6

The decoded arguments is an array with a single tuple of three elements:

[
    (
        0xc407398d063f942feBbcC6F80a156b47F3f1BDA6,
        0x3B73Fa8d82f511A3caE17B5a26E4E1a2d5E2f2A4,
        0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6
    )
]

This tuple is an OpChainConfig struct for the chain being updated, which is Unichain:

• systemConfigProxy: 0xc407398d063f942feBbcC6F80a156b47F3f1BDA6
• proxyAdmin: 0x543bA4AADBAb8f9025686Bd03993043599c6fB044
• absolutePrestate: 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6

As a result, OPContractsManager.updatePrestate() is called to update the prestate hash for Unichain mainnet.

State Validation

For each contract listed in the state diff, please verify that no contracts or state changes shown in the Tenderly diff are missing from this document. Additionally, please verify that for each contract:

• The following state changes (and none others) are made to that contract. This validates that no unexpected state changes occur.
• All addresses (in section headers and storage values) match the provided name, using the Etherscan and Superchain Registry links provided. This validates the bytecode deployed at the addresses contains the correct logic.
• All key values match the semantic meaning provided, which can be validated using the storage layout links provided.

Generic Safe State Overrides

Note: The changes listed below do not include threshold, nonce and owner mapping overrides. These changes are listed and explained in the NESTED-VALIDATION.md file.

0x2f12d621a16e2d3285929c9996f478508951dfe4 (DisputeGameFactory) - Chain ID: 130 (UNICHAIN)

• Key: 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e

  • Before: 0x00000000000000000000000067d59ac1166ba17612be0edf275187e38cbf9b99
  • After: 0x000000000000000000000000485272c0703020e1354328a1aba3ca767997bed3
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
    • Detail: This state update will replace the old Dispute Game implementation for the Game Type 1 (PERMISSIONED_CANNON) - 0x67d59ac1166ba17612be0edf275187e38cbf9b99 (old) => 0x485272c0703020e1354328a1aba3ca767997bed3 (new)
  • Key Explanation: The key represents the position in the gameImpls mapping of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 1 (PERMISSIONED_CANNON) 0x4d5a9bd2e41301728d41c8e705190becb4e74abe869f75bdb405b63716a35f9e:

  cast index uint32 1 101



  GameType is uint32 type

  Position in the mapping is 1

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

• Key: 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b

  • Before: 0x00000000000000000000000056ebb9eae4f33ceaed3672446e3812d77f8a8a2c
  • After: 0x00000000000000000000000057a3b42698dc1e4fb905c9ab970154e178296991
  • Summary: Replaces Dispute Game Implementation in the DisputeGameFactory contract
  • Detail: This state update will replace the old Dispute Game implementation for the Game Type 0 (CANNON) - 0x56ebb9eae4f33ceaed3672446e3812d77f8a8a2c (old) => 0x57a3b42698dc1e4fb905c9ab970154e178296991 (new)
  • Key Explanation: The key represents the position in the gameImpls of the targeted Game Type

  If we run the following command it will give us the exact position of Game Type 0 (CANNON) 0xffdfc1249c027f9191656349feb0761381bb32c9f557e01f419fd08754bf5a1b:

  cast index uint32 0 101



  GameType is uint32 type

  Position in the mapping is 0

  Slot in the contract's storage is 101

  Note: The new game implementation is identical to the old one, with the only update being the prestate set to 0x03682932cec7ce0a3874b19675a6bbc923054a7b321efc7d3835187b172494b6.

0x9343c452dec3251fe99D9Fd29b74c5b9CD1751a6 (LivenessGuard Unichain)

THIS STATE DIFF ONLY APPEARS WHEN SIGNING FOR THE UNICHAIN SAFE AND DOES NOT NEED TO BE CHECKED BY SIGNERS.

The details are explained in NESTED-VALIDATION.md.

0x24424336F04440b1c28685a38303aC33C9D14a25 (LivenessGuard Security Council)

THIS STATE DIFF ONLY APPEARS WHEN SIGNING FOR THE COUNCIL AND DOES NOT NEED TO BE CHECKED BY SIGNERS.

The details are explained in NESTED-VALIDATION.md.

0x6d5b183f538abb8572f5cd17109c617b994d5833 (Unichain ProxyAdminOwner)

• Nonce increments see below
• approvedHashes mapping updates are explained in detail in NESTED-VALIDATION.md. The key computations are:
  • Unichain Safe only

    SAFE_SIGNER=0xb0c4C487C5cf6d67807Bc2008c66fa7e2cE744EC
    SAFE_HASH=0x1ddd958de5bc75389847abb6cd0d8551f0ecfdaf763b9c80e935dbb1c37a3948
    cast index bytes32 $SAFE_HASH $(cast index address $SAFE_SIGNER 8)


    Key: 0xf8504c099de345eb1c403a30d49833b4834f40d609b6b2107b81927e309b987a
  • Optimism Foundation only

    SAFE_SIGNER=0x847B5c174615B1B7fDF770882256e2D3E95b9D92
    SAFE_HASH=0x1ddd958de5bc75389847abb6cd0d8551f0ecfdaf763b9c80e935dbb1c37a3948
    cast index bytes32 $SAFE_HASH $(cast index address $SAFE_SIGNER 8)


    Key: 0xab2f364801a9ab669e9ddf4ec9b8d06c52acca51c9626e5242dd8a9b79a1f0aa
  • Security Council only

    SAFE_SIGNER=0xc2819DC788505Aac350142A7A707BF9D03E3Bd03
    SAFE_HASH=0x1ddd958de5bc75389847abb6cd0d8551f0ecfdaf763b9c80e935dbb1c37a3948
    cast index bytes32 $SAFE_HASH $(cast index address $SAFE_SIGNER 8)


    Key: 0x488861e7a26dcec539aebd39e2015ecbaaa7c5924c668939a8cfe1af67718786

Nonce increments

• Contract deployments are shown as nonce increments from 0 to 1
  • 0x485272c0703020e1354328A1aBa3ca767997BEd3 - Permissioned [PERMISSIONED_CANNON] GameType Implementation for Unichain Mainnet
  • 0x57a3B42698DC1e4Fb905c9ab970154e178296991 - Permissionless [CANNON] GameType Implementation for Unichain Mainnet
• The remaining nonce increments are for the Safes and EOAs that are involved in the simulation. The details are described in the generic NESTED-VALIDATION.md document.
  • - Sender address of the Tenderly transaction (Your ledger or first owner on the nested safe (if you're simulating)).
  • 0x6d5B183F538ABB8572F5cD17109c617b994D5833 - Unichain ProxyAdminOwner
    • Contract nonce 6 -> 8 - two contract deployments above
    • Safe nonce (slot 0x5) 4 -> 5
  • Only one of the following nonce increments, depending on which Owner Safe is simulated
    • 0xb0c4C487C5cf6d67807Bc2008c66fa7e2cE744EC - Unichain Operations Safe 10 -> 11
    • 0x847B5c174615B1B7fDF770882256e2D3E95b9D92 - Foundation Upgrade Safe 25 -> 26
    • 0xc2819DC788505Aac350142A7A707BF9D03E3Bd03 - Security Council Safe 26 -> 27

Suplement Material

The following is the storage slots layout of the DisputeGameFactory contract:
